LTECH DX4 RGBW Touch Panel Manual LED Controller

Be the first to review this product

Availability: In stock

  • Buy 30 for £33.75 each and save 9%

Quick Overview

 LTECH DX4 RGBW Touch Panel Manual LED Controller is durable for LED Lighting decoration, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED items, Pls feel free to contact

LTECH DX4 RGBW Touch Panel Manual LED Controller

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

* Required Fields



Wireless DX4 Controller Glass Touch Panel RGBW RGB 2.4G RF Console is very easy to use, it has simple fashion and decent appearance design.

Base on 2.4Hz wireless multi-zone control, no wiring trouble.

Can choose DMX 512 output, control DMX lamps.

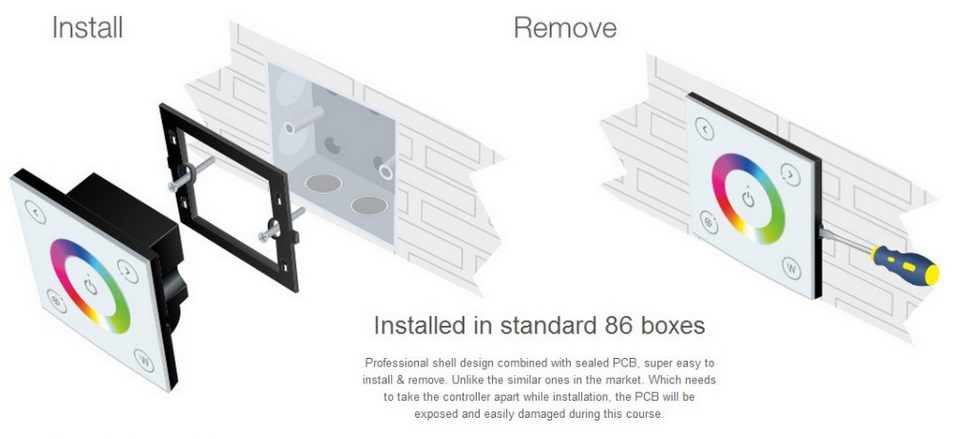

Unique structure, super easy to install/remove.

High accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.

Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.

Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance.

Working temperature: -20-60 degreen

Working (input) voltage  AC100~240V

Output signal  RF 2.4G+DMX512

Control mode  Sync control

RF Remote control distance  approx 30 meters

Working temperature  -20℃~60℃

Dimensions  L86×W86×H36mm

Package Size  L112×W112×H48mm

Weight (N.W.)  225g

Package Include:

1 Piece of Wireless DX4 Controller Glass Touch Panel RGBW RGB 2.4G RF Console

1 Piece of User's Manual

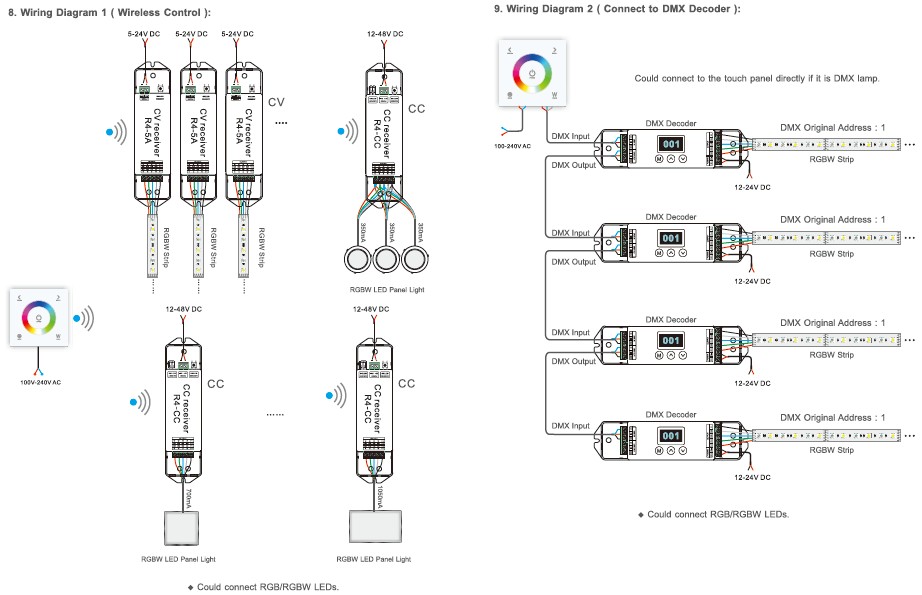

Pls noted if you want to use this wireless DX4 controller to control RGBW or RGB led lights, you will need the receiver. You would choose R4-5A Receiver(Constant Voltage output) or R4-CC Receiver (Constant Current output) according to your need.  One wireless DX4 Controller would work with many receivers at the same time (You need to do the ID Learning (code matching) first according to our user's manual; and also the receivers should be in the ).






High-grade tempered glass panel

Adopt high-grade tempered glass panel, super easy to operate and with a bounch of outstanding featueres: nobleness & elegance, well protected against moisture, water, Corrosion and dust. Easy to clean. high strength, nonbreakable and Scratch Resistance, Non-defrmation, nondiscolouring, durable

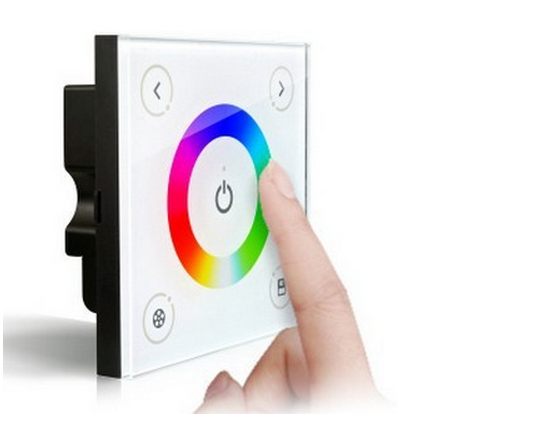

Latest human detection design. Capacitive touching sensor

High accuracy touching IC+special post-processing, the touching accuracy is highly strengthened, soft to the touch but highly sensitive.

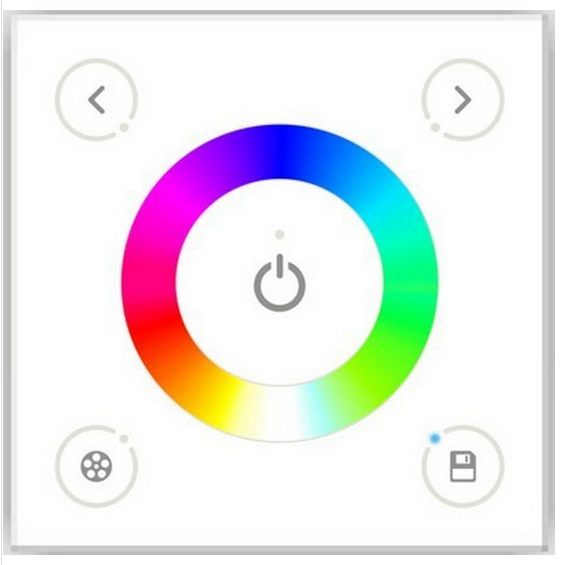

Humanized touch circle

Equipped with single color, two colors or colorful touch circle .adopt high accuracy Capacitive touch control chip, increases touch sensitivity and decreases mistaken triggering. Makes LED dimming and color chosen more humanized.


Touching along with chord music & LED indicator

LED indicator emits pale blue light when touching the keys, along with beautiful chord music. Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.


Scenes Save & playback

Users could save the designed lighting effects anytime, anywhere for playback next time.


T-PWM dimming technology/ 4096 gray scale

Pioneered T-PWM dimming technology+ 4096 gray scale makes an almost perfect dimming/ color-mixing performance.



CE and RoHS approved
